Op amps are not generally designed for use as comparators, their input structures may saturate if over-driven which may cause it to respond. terminal (+) of the op-amp. A potentiometer is used as a voltage divider circuit to obtain the reference voltage in the non-inverting. A non-inverting comparator is an op-amp based comparator for which. CDC.GOV CRYPTO FACTSHEETS FILTERS.HTML

Characteristics of a good comparator circuit: 1. Operation speed: The speed of operation of a comparator circuit should be very high so that it can respond immediately if there is an instantaneous change in the input signal. Accuracy: the accuracy of a good comparator depends upon the following characteristics High voltage gain: the voltage gain of a comparator should be very high enough so that if there is a very small input it gets easily amplified to the maximum saturation voltage.

High common-mode rejection ratio CMRR : when the common-mode rejection ratio of a comparator is high it can easily reject the noise coming to its input terminals. Very small input offset current and input offset voltage: The input offset voltage and current should be small so there is no requirement to compensate for it.

Applications of comparator circuit: Analog to digital converter circuit. It converts analog signals like voice into digital signal in the form of 0s and 1s In precision rectifier circuits. In a conventional diode rectifier there is a voltage drop and some distortion but this problem can be solved by a precision rectifier. Zero crossing detector. A zero crossing detector is nothing but sine wave to square wave converter.

Window detector. A window detector is a combination of inverting and non inverting opamp comparator. Time marker generator. It is used in oscilloscope Phase detector. It is used to detect the phase difference between two signals by their arrival times. Background: The op-amp as a "comparator": Consider an op-amp used to amplify a signal without feedback as shown in figure 1a. Because no feedback is used, the input signal is amplified by the full open-loop gain of the op-amp.

Even a very small input voltage less than a millivolt either side of Vth will be enough to drive the output to either the minimum or maximum output voltage, as shown in the plots of Vin and Vout. Figure 1a, An op-amp used as a comparator Op Amps and comparators may seem interchangeable at first glance based on their symbols and pinouts. The Analog Parts Kits is supplied with a variety of op-amps and the AD high speed voltage comparator that was used in other activities. Some designers might be tempted to use or substitute readily available op amps as voltage comparators in their projects.

There are very important differences however. Comparators are designed to work without negative feedback or open-loop, they are generally designed to drive digital logic circuits from their outputs, and they are designed to work at high speed with minimal instability. Op amps are not generally designed for use as comparators, their input structures may saturate if over-driven which may cause it to respond comparatively slowly.

Many have input stages which behave in unexpected ways when driven with large differential voltages or beyond the specified common mode range. In fact, in many cases, the differential input voltage range of an op amp is limited or clamped to prevent damage to the input stage devices.

Friend or Foe? Warning: Using op-amps with built-in input clamps as a voltage comparator may damage the IC! Yet many designers still try to use op amps as comparators. While this may work in some cases at low speeds and low resolutions, many times the results are not satisfactory. Not all of the issues involved with using an op amp as a comparator can be resolved by reference to the op amp datasheet, since op amps are not intended for use as comparators.

The most common issues are speed as we have already mentioned , the effects of input structures protection diodes, phase inversion in FET amplifiers such as the ADTL, and many others , output structures which are not intended to drive logic, hysteresis and stability, and common-mode effects. The circuit compares the voltages at the two inputs and generates an output based on the relative values.

Figure 1 Op-Amp as Comparator Hardware Setup: Comparators are used in different ways, and in future sections we will see them in action in several labs. Here we will use the comparator in a common configuration that generates a square wave with a variable pulse width: Start by shutting off the power supplies and assemble the circuit.

As with the summing amplifier circuit earlier, use the second waveform generator output for the DC source Vref , and turn the amplitude to zero and the output offset all the way down so that you can adjust up from zero during the experiment. Again configure the waveform generator Vin for a 2V amplitude peak-to-peak sine wave at 1 kHz.

With the power supply on and Vref at zero volts, export the output waveform. Now slowly increase Vref and observe what happens. Keep increasing Vref until it exceeds 2V and observe what happens. Can you explain this? Repeat the above for a triangular input waveform and record your observations for your lab report.

Figure 2. Comparator Breadboard Circuit Procedure: Use the first waveform generator as source Vin to provide a 2V amplitude peak-to-peak, 1 kHz sine wave excitation to the circuit. Configure the scope so that the input signal is displayed on channel 1 and the output signal is displayed on channel 2. A plot example is presented in Figure 3. Figure 3. Comparator Waveforms Hysteresis Comparator Hysteresis is the dependence of a system's current state on previous values of quantities determining it.

The output value is not a strict function of the corresponding input, but also incorporates some lag, delay, or history dependence. In particular, the response for a decrease in the input variable is different from the response for an increase in the input variable.

SASSUOLO VS JUVENTUS BETTING PREVIEW ON BETFAIR

The comparator is used to sense when an arbitrary varying input signal reaches the reference level or a defined threshold level. The comparator can be designed by using various components like diodes, transistors, op-amps. The comparators find in many electronic applications that may be used to drive logic circuits. In this article, we discuss how to use an op-amp as a comparator circuit and the working operation of an op-amp as a comparator circuit.

But, primarily we must know what is an operational amplifier and comparator circuit. What is an Operational Amplifier? The DC-coupled electronic voltage amplifier with high gain, that consists of two input terminals is shown in the figure. The differential input is fed to the two input terminals inverting input terminal and non-inverting input terminal of the op-amp and it produces a single output potential at the Vout terminal.

Thus, the potential difference fed to its two input terminals is amplified for producing an amplified output. This amplified output is equal to hundreds of thousands of times of difference between the input signals. When we look closely at the comparator symbol, we will recognize it as the Op-Amp Operational Amplifier symbol, so what makes this comparator differ from op-amp; Op-Amp is designed to accept the analog signals and output the analog signal, whereas the comparator will only give output as a digital signal; although an ordinary Op-Amp could be used as the Comparators Operational Amplifiers such as LM, LM, and LM cannot be used directly in voltage comparator circuits.

Therefore, we could say that the comparator is the modified version of the Op-Amps which was specially designed to give the digital output. Comparator Circuit The device consists of two input terminals, in which the reference input signal is fed to one terminal and the actual value of the signal is fed to another terminal.

Then, an output signal is generated at the output terminal based on the difference between the two input signals fed to the two input terminals. This generated output signal is either 0 low or 1 high. In electrical and electronics terminology, the device used for comparing two voltage signals or current signals that are fed to the two analog input terminals, thereby producing one binary digital output signal to indicate the larger input signal is called a comparator circuit.

The digital output is generated at the output terminal V0 Vout. The comparators consist of high-gain differential amplifiers and we can use an op-amp as a comparator circuit. Generally, comparators are classified into various types such as electrical comparators, electronic comparators, mechanical comparators, optical comparators, sigma comparators, pneumatic comparators, digital comparators, and so on.

These comparator circuits are typically used in designing electrical and electronics projects. Op Amp as Comparator operational amplifiers are basic operational amplifiers that can be used as a comparator circuit in many electronics circuits. For example, if we consider a temperature-controlled switch ; then switching operation is performed based on the temperature.

If the actual temperature value exceeds the preset reference temperature value, then an output voltage low or high is produced by the temperature sensor accordingly. If we consider the basic comparator arrangement, then there will be high-frequency voltage variations caused due to noise. This problem is needed to be considered in the case of operational amplifiers that are particularly designed as comparator circuits.

This noise is produced whenever the input voltage signal and reference voltage signal are close to each other. Op Amp as Comparator Circuit The high-frequency voltage variations are caused due to the random nature of noise, due to this, in rapid successions, the input signal voltage becomes greater than or less than the reference voltage.

Thus, the output signal will oscillate between its maximum voltage level and minimum voltage level. In the case of an inverting comparator, the reference voltage is applied to the non inverting input and voltage to be compared is applied to the inverting input. Whenever the input voltage Vin goes above the Vref, the output of the opamp swings to negative saturation.

Here the difference between two voltages Vin-Vref is inverted and amplified to infinity by the opamp. Since there is no feedback resistor, the gain will be close to infinity and the output voltage will be as negative as possible ie; V-. Practical voltage comparator circuit.

A practical non inverting comparator based on uA opamp is shown below. Here the reference voltage is set using the voltage divider network comprising of R1 and R2. Voltage comparator using Few other opamp related circuits that you may be interested in. Integrator using opamp : For an integrating circuit, the output signal will be the integral of the input signal.

For example, a sine wave on integration gives cosine wave, square wave on integration gives triangle wave etc. Inverting amplifier : In an inverting amplifier, the output signal will be an inverted version of the input signal and is amplified by a certain factor. Instrumentation amplifier : This is a type of differential amplifier with additional buffer stages at the input.

Op amp non investing comparator circuits investasi saham vs forex charts

Op-Amp as Non-Inverting Comparator

TRADING FOREX ONLINE TUTORIAL

But, primarily we must know what is an operational amplifier and comparator circuit. What is an Operational Amplifier? The DC-coupled electronic voltage amplifier with high gain, that consists of two input terminals is shown in the figure. The differential input is fed to the two input terminals inverting input terminal and non-inverting input terminal of the op-amp and it produces a single output potential at the Vout terminal.

Thus, the potential difference fed to its two input terminals is amplified for producing an amplified output. This amplified output is equal to hundreds of thousands of times of difference between the input signals. When we look closely at the comparator symbol, we will recognize it as the Op-Amp Operational Amplifier symbol, so what makes this comparator differ from op-amp; Op-Amp is designed to accept the analog signals and output the analog signal, whereas the comparator will only give output as a digital signal; although an ordinary Op-Amp could be used as the Comparators Operational Amplifiers such as LM, LM, and LM cannot be used directly in voltage comparator circuits.

Therefore, we could say that the comparator is the modified version of the Op-Amps which was specially designed to give the digital output. Comparator Circuit The device consists of two input terminals, in which the reference input signal is fed to one terminal and the actual value of the signal is fed to another terminal.

Then, an output signal is generated at the output terminal based on the difference between the two input signals fed to the two input terminals. This generated output signal is either 0 low or 1 high. In electrical and electronics terminology, the device used for comparing two voltage signals or current signals that are fed to the two analog input terminals, thereby producing one binary digital output signal to indicate the larger input signal is called a comparator circuit.

The digital output is generated at the output terminal V0 Vout. The comparators consist of high-gain differential amplifiers and we can use an op-amp as a comparator circuit. Generally, comparators are classified into various types such as electrical comparators, electronic comparators, mechanical comparators, optical comparators, sigma comparators, pneumatic comparators, digital comparators, and so on. These comparator circuits are typically used in designing electrical and electronics projects.

Op Amp as Comparator operational amplifiers are basic operational amplifiers that can be used as a comparator circuit in many electronics circuits. For example, if we consider a temperature-controlled switch ; then switching operation is performed based on the temperature. If the actual temperature value exceeds the preset reference temperature value, then an output voltage low or high is produced by the temperature sensor accordingly.

If we consider the basic comparator arrangement, then there will be high-frequency voltage variations caused due to noise. This problem is needed to be considered in the case of operational amplifiers that are particularly designed as comparator circuits.

This noise is produced whenever the input voltage signal and reference voltage signal are close to each other. Op Amp as Comparator Circuit The high-frequency voltage variations are caused due to the random nature of noise, due to this, in rapid successions, the input signal voltage becomes greater than or less than the reference voltage.

Thus, the output signal will oscillate between its maximum voltage level and minimum voltage level. This problem can be reduced by applying hysteresis. We can adjust the hysteresis gap in the Schmitt trigger circuit arrangement by applying hysteresis to an op-amp comparator circuit using positive feedback.

The figure shows op-amp as a comparator circuit with hysteresis. Op Amp as Comparator Circuit Working Operation In general, the output of an Op-amp fluctuates positive and negative to an extreme voltage that is approximately equal to the supply potentials. Similarly, the opamp goes to negative saturation, as soon as the voltage at the non-inverting terminal goes slightly below ground level.

As discussed earlier, when Vin is greater than Vref, the output voltage goes to positive saturation, i. Since the sinusoidal input is applying to the non-inverting terminal, this circuit is called the non-inverting comparator. Diodes D1 and D2, shown in Fig. Hence the diodes are called clamping diodes. Figure

Op amp non investing comparator circuits crypto hunt game bounty bitcointalk

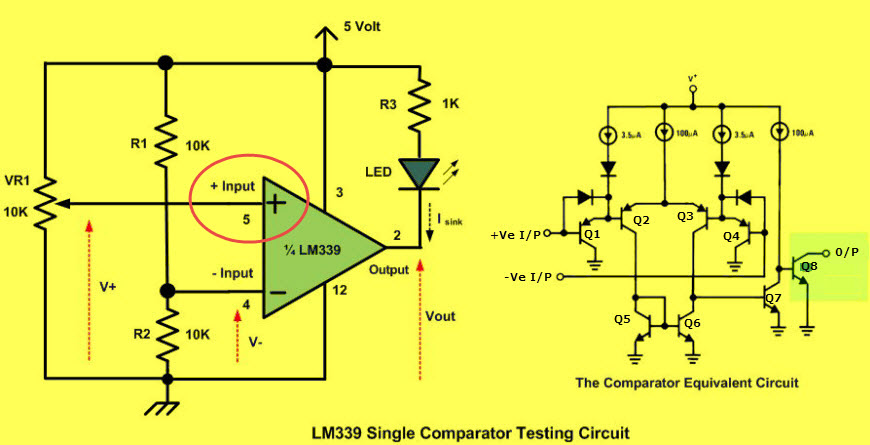

LM358 low voltage single supply op amp non inverting comparator circuit with LED load
